Interface IUMLProtocolStateMachine

diagram

UModelAPI_diagrams/UModelAPI_p513.png

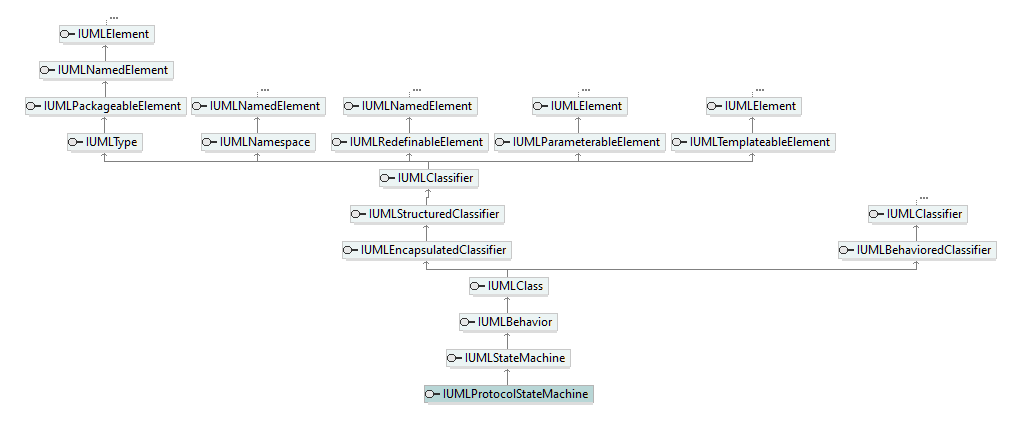

hierarchy

UModelAPI_diagrams/UModelAPI_p514.png

typedElements

Interface IUMLDataAll	Operation	Protocol SetNewProtocol
Interface IUMLInterface	Operation	Protocol SetNewProtocol
Interface IUMLPort	Operation	Protocol

Operation IUMLProtocolStateMachine::Interface

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLInterface
