UModel API

UModelAPI - IUMLOperation

Interface IUMLOperation

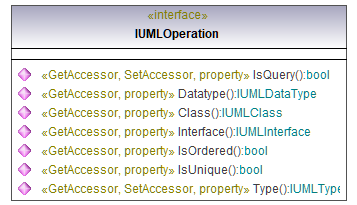

diagram

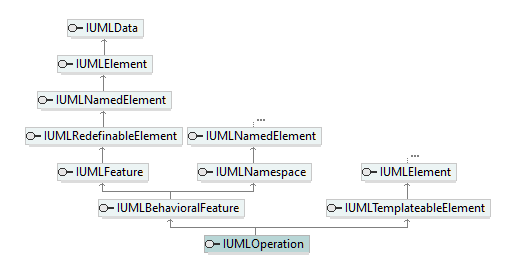

hierarchy

typedElements

Interface IDocument	Operation	GenerateSequenceDiagram
Interface IUMLArtifact	Operation	InsertOwnedOperationAt
Interface IUMLCallEvent	Operation	Operation
Interface IUMLCallOperationAction	Operation	CallOperation
Interface IUMLClass	Operation	InsertOwnedOperationAt
Interface IUMLDataAll	Operation	CallOperation CodeOperation GetOperation InsertOwnedOperationAt Operation SetOperation
Interface IUMLDataType	Operation	InsertOwnedOperationAt
Interface IUMLGuiSequenceDiagram	Operation	CodeOperation
Interface IUMLInterface	Operation	InsertOwnedOperationAt
Interface IUMLMessage	Operation	GetOperation SetOperation
Interface IUMLParameter	Operation	Operation

Operation IUMLOperation::Class

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLClass

Operation IUMLOperation::Datatype

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataType

Operation IUMLOperation::Interface

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLInterface

Operation IUMLOperation::IsOrdered

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLOperation::IsQuery

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLOperation::IsUnique

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLOperation::Type

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLType

UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Thu Apr 30 14:03:32 2026
