UModelAPI - IUMLArtifact

Scroll Home Prev Top Next More

Interface IUMLArtifact

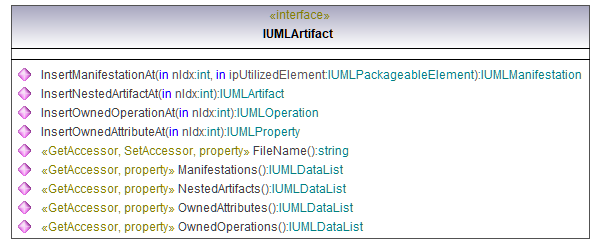

diagram

UModelAPI_diagrams/UModelAPI_p128.png

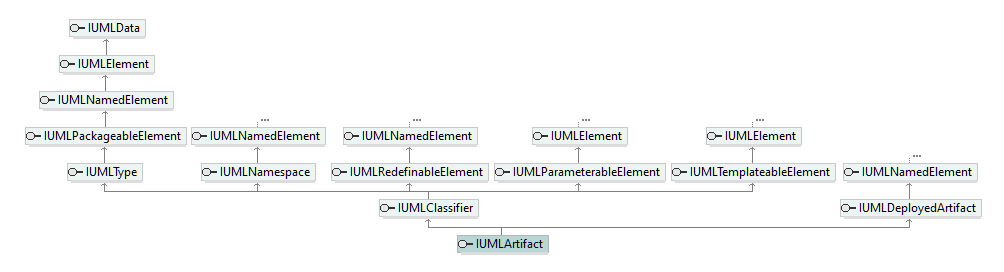

hierarchy

UModelAPI_diagrams/UModelAPI_p129.png

typedElements

Interface IUMLArtifact	Operation	InsertNestedArtifactAt
Interface IUMLDataAll	Operation	InsertNestedArtifactAt

Operation IUMLArtifact::FileName

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLArtifact::InsertManifestationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipUtilizedElement	in	IUMLPackageableElement
return	return	IUMLManifestation

Operation IUMLArtifact::InsertNestedArtifactAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLArtifact

Operation IUMLArtifact::InsertOwnedAttributeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLProperty

Operation IUMLArtifact::InsertOwnedOperationAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLOperation

Operation IUMLArtifact::Manifestations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLManifestation.

Operation IUMLArtifact::NestedArtifacts

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLArtifact.

Operation IUMLArtifact::OwnedAttributes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLProperty.

Operation IUMLArtifact::OwnedOperations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLOperation.
