The UModel API > API Reference > UMLData Interfaces > IUMLElement

UModelAPI - IUMLUseCase

Scroll Home Prev Top Next More

Interface IUMLUseCase

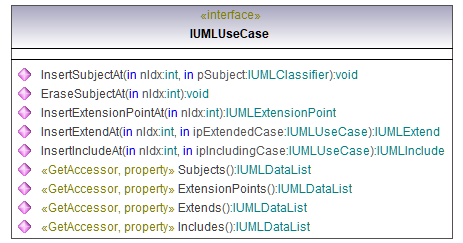

diagram

UModelAPI_diagrams/UModelAPI_p585.png

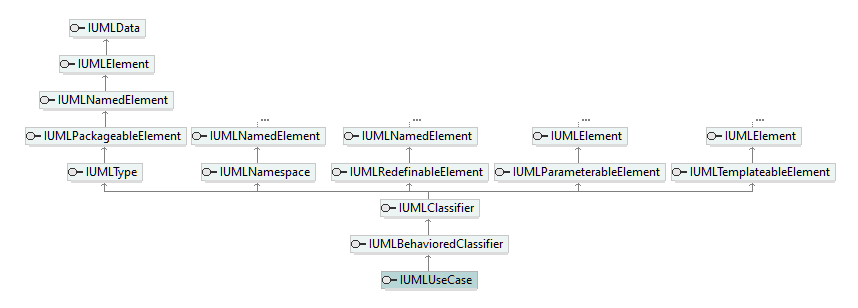

hierarchy

UModelAPI_diagrams/UModelAPI_p586.png

typedElements

Interface IUMLClassifier	Operation	InsertOwnedUseCaseAt
Interface IUMLDataAll	Operation	Addition ExtendedCase Extension IncludingCase InsertExtendAt InsertIncludeAt InsertOwnedUseCaseAt UseCase
Interface IUMLExtend	Operation	ExtendedCase Extension
Interface IUMLExtensionPoint	Operation	UseCase
Interface IUMLInclude	Operation	Addition IncludingCase
Interface IUMLUseCase	Operation	InsertExtendAt InsertIncludeAt

Operation IUMLUseCase::EraseSubjectAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	void

Operation IUMLUseCase::Extends

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLExtend.

Operation IUMLUseCase::ExtensionPoints

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLExtensionPoint.

Operation IUMLUseCase::Includes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLInclude.

Operation IUMLUseCase::InsertExtendAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipExtendedCase	in	IUMLUseCase
return	return	IUMLExtend

Operation IUMLUseCase::InsertExtensionPointAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
return	return	IUMLExtensionPoint

Operation IUMLUseCase::InsertIncludeAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipIncludingCase	in	IUMLUseCase
return	return	IUMLInclude

Operation IUMLUseCase::InsertSubjectAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
pSubject	in	IUMLClassifier
return	return	void

Operation IUMLUseCase::Subjects

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLClassifier.

UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Thu Apr 30 14:03:32 2026
