UModelAPI - IUMLGuiNote

Scroll Home Prev Top Next More

Interface IUMLGuiNote

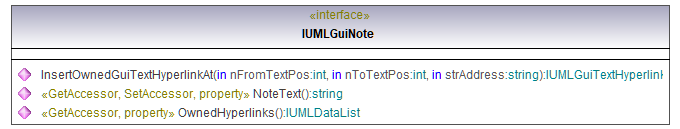

diagram

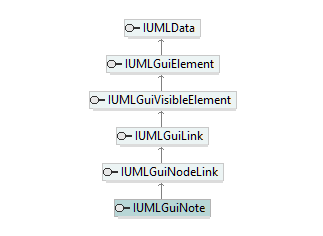

hierarchy

typedElements

Interface IUMLDataAll	Operation	AddUMLGuiNote AddUMLGuiNoteLink AddUMLGuiNoteLinkToLine
Interface IUMLGuiDiagram	Operation	AddUMLGuiNote AddUMLGuiNoteLink AddUMLGuiNoteLinkToLine

documentation

A IUMLGuiNote is the graphical object resembling a note on UModel diagrams displaying a text comment.

It provides access to the note text and a list of hyperlinks in this text. These hyperlinks are nothing more than a list of URLs together with an begin and end number referencing positions in the text. Any text between a such a begin and end position is displayed as hyperlink and triggers UModel to open the URL when clicked.

Operation IUMLGuiNote::InsertOwnedGuiTextHyperlinkAt

parameter

name	direction	type	type modifier	multiplicity	default
nFromTextPos	in	int
nToTextPos	in	int
strAddress	in	string
return	return	IUMLGuiTextHyperlink

Operation IUMLGuiNote::NoteText

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLGuiNote::OwnedHyperlinks

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList
