UModel API

UModelAPI - IUMLConnector

Interface IUMLConnector

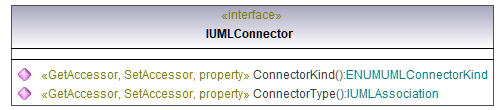

diagram

hierarchy

typedElements

Interface IUMLDataAll	Operation	InsertOwnedConnectorAt InsertRealizingConnectorAt
Interface IUMLInformationFlow	Operation	InsertRealizingConnectorAt
Interface IUMLStructuredClassifier	Operation	InsertOwnedConnectorAt

Operation IUMLConnector::ConnectorKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLConnectorKind

documentation

Deprecated: Since UML2.3 (UModel2010r2) 'ConnectorKind' is derived and cannot be set anymore.

Operation IUMLConnector::ConnectorType

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLAssociation
