UModel API

UModelAPI - IUMLComponent

Interface IUMLComponent

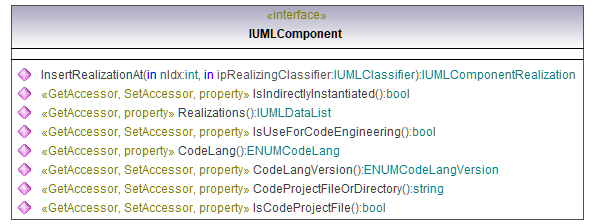

diagram

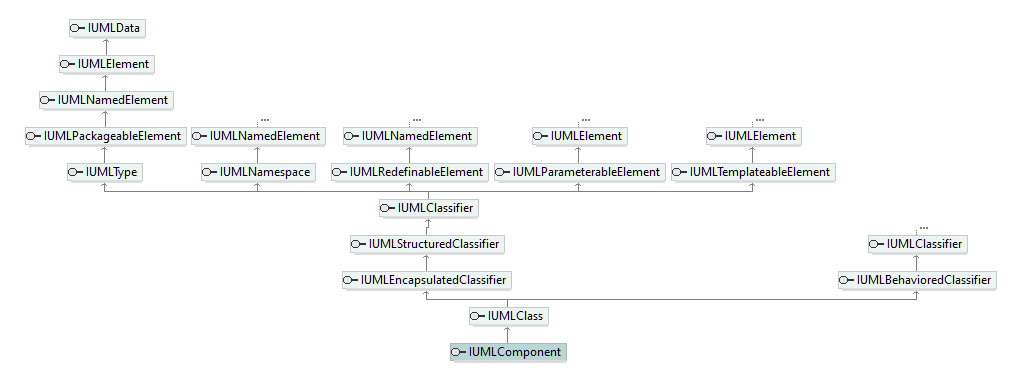

hierarchy

typedElements

Interface IUMLComponentRealization	Operation	Abstraction
Interface IUMLDataAll	Operation	Abstraction

Operation IUMLComponent::CodeLang

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMCodeLang

Operation IUMLComponent::CodeLangVersion

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMCodeLangVersion

Operation IUMLComponent::CodeProjectFileOrDirectory

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLComponent::InsertRealizationAt

parameter

Operation IUMLComponent::IsCodeProjectFile

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLComponent::IsIndirectlyInstantiated

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLComponent::IsUseForCodeEngineering

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation IUMLComponent::Realizations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLComponentRealization.

UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Thu Apr 30 14:03:32 2026
