Interface IUMLActivityEdge

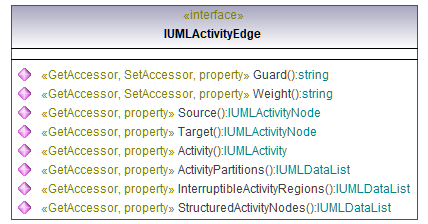

diagram

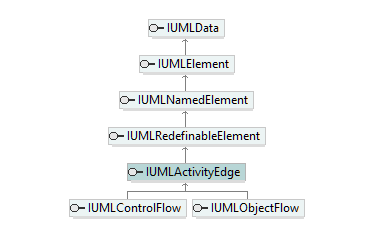

hierarchy

typedElements

Interface IUMLActivity	Operation	InsertActivityEdgeAt
Interface IUMLActivityPartition	Operation	InsertEdgeAt
Interface IUMLDataAll	Operation	InsertActivityEdgeAt InsertEdgeAt InsertInterruptingEdgeAt
Interface IUMLInterruptibleActivityRegion	Operation	InsertInterruptingEdgeAt
Interface IUMLStructuredActivityNode	Operation	InsertEdgeAt

Operation IUMLActivityEdge::Activity

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLActivity

Operation IUMLActivityEdge::ActivityPartitions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLActivityPartition.

Operation IUMLActivityEdge::Guard

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLActivityEdge::InterruptibleActivityRegions

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

Operation IUMLActivityEdge::Source

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLActivityNode

Operation IUMLActivityEdge::StructuredActivityNodes

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLStructuredActivityNode.

Operation IUMLActivityEdge::Target

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLActivityNode

Operation IUMLActivityEdge::Weight

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string
