The UModel API > API Reference > UModel API Interfaces

UModelAPI - ILocalOptionsCodeEngineering

Scroll Home Prev Top Next More

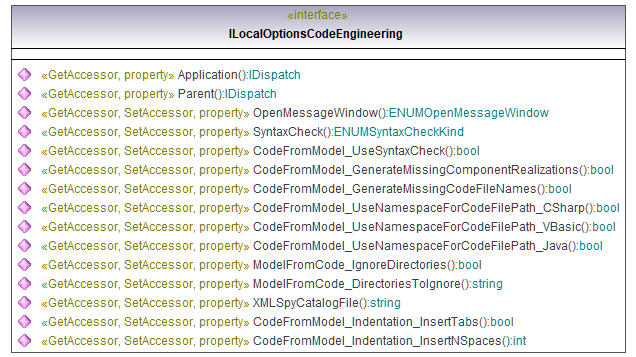

Interface ILocalOptionsCodeEngineering

diagram

typedElements

Interface ILocalOptions

Operation

CodeEngineering

Operation ILocalOptionsCodeEngineering::Application

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IDispatch

Operation ILocalOptionsCodeEngineering::CodeFromModel_GenerateMissingCodeFileNames

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_GenerateMissingComponentRealizations

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_Indentation_InsertNSpaces

parameter

name	direction	type	type modifier	multiplicity	default
return	return	int

Operation ILocalOptionsCodeEngineering::CodeFromModel_Indentation_InsertTabs

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_UseNamespaceForCodeFilePath_CSharp

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_UseNamespaceForCodeFilePath_Java

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_UseNamespaceForCodeFilePath_VBasic

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::CodeFromModel_UseSyntaxCheck

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::ModelFromCode_DirectoriesToIgnore

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation ILocalOptionsCodeEngineering::ModelFromCode_IgnoreDirectories

parameter

name	direction	type	type modifier	multiplicity	default
return	return	bool

Operation ILocalOptionsCodeEngineering::OpenMessageWindow

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMOpenMessageWindow

Operation ILocalOptionsCodeEngineering::Parent

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IDispatch

Operation ILocalOptionsCodeEngineering::SyntaxCheck

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMSyntaxCheckKind

Operation ILocalOptionsCodeEngineering::XMLSpyCatalogFile

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Thu Apr 30 14:03:32 2026
