Altova XMLSpy 2024 Enterprise Edition

The Menu tab allows you to customize the two main menu bars (default and application menu bars) as well as the application's context menus.

CustomizeMenu



Customizing the default menu bar and application menu bar

The default menu bar is the menu bar that is displayed when no document is open in the main window. The application menu bar is the menu bar that is displayed when one or more documents are open in the main window. Each menu bar can be customized separately, and customization changes made to one do not affect the other.

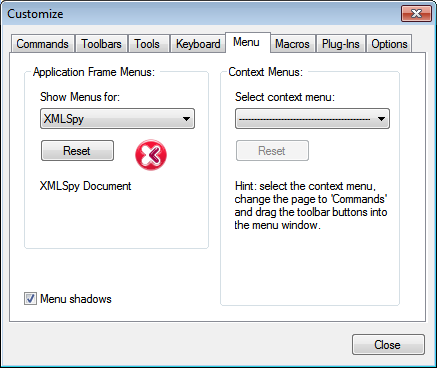

To customize a menu bar, select it in the Show Menus For combo box (see screenshot above). Then switch  to the Commands tab of the Customize dialog and drag commands from the Commands list box to the menu bar or into any of the menus.



Deleting commands from menus and resetting the menu bars

To delete an entire menu or a command inside a menu, do the following:



1.In the Application Frame Menus pane, select either Default (which shows available menus when no document is open) or XMLSpy (which shows available menus when one or more documents are open).

2.With the Customize dialog open, select (i) the menu you want to delete from the application's menu bar, or (ii) the command you want to delete from one of these menus.

3.Either (i) drag the menu from the menu bar or the menu command from the menu, or (ii) right-click the menu or menu command and select Delete.



You can reset each of these two menu bars (default and application menu bars) to its original installation state by selecting the menu in the Show Menus For combo box and then clicking the Reset button below the combo box.



Customizing the application's context menus

Context menus are the menus that appear when you right-click certain objects in the application's interface. Each of these context menus can be customized by doing the following:



1.Select the context menu you want in the Select Context Menu combo box. This pops up the context menu.

2.Switching to the Commands tab of the Customize dialog.

3.Drag a command from the Commands list box into the context menu.

4.If you wish to delete a command from the context menu, right-click that command in the context menu, and click Delete. Alternatively, you can drag the command you want to delete out of the context menu.



You can reset any context menu to its original installation state by selecting it in the Select Context Menu combo box and then clicking the Reset button below the combo box.



Menu shadows

Click the Menu shadows check box to give all menus shadows.
