UModel API

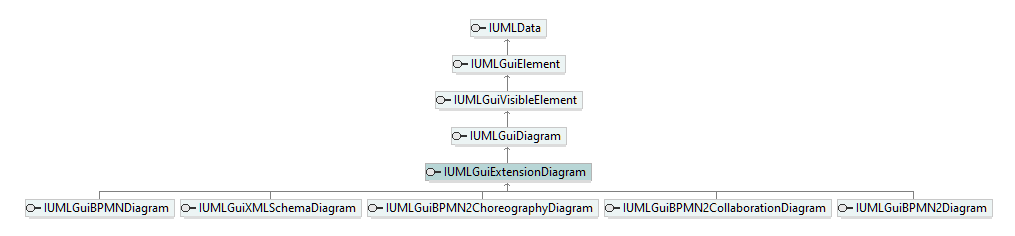

diagram

hierarchy

documentation

This diagram type is the base for all UModel specific extension diagrams (for example BPMN diagrams, XML Schema Diagrams) and not a diagram type for itself.
