This section:



Setting the chart type

List of chart types

Other basic settings





Setting the chart type

The most basic chart setting is the chart type. To select the chart type, click Change Type in the Chart Settings pane of the Chart Configuration dialog.

ChartSettingsPaneSV
ChartTypeDialogSV



Chart types

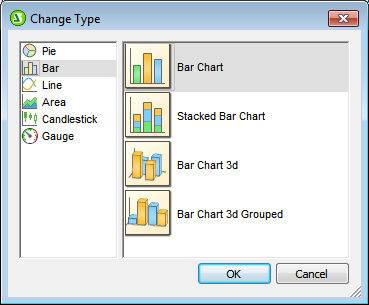

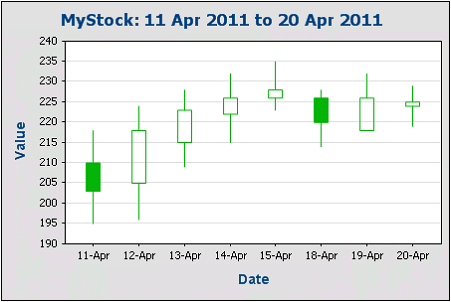

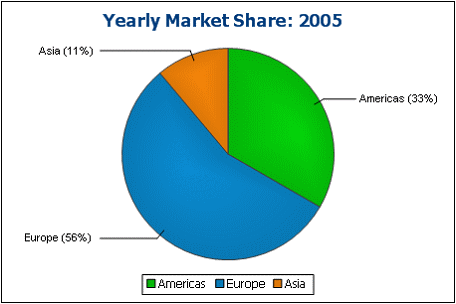

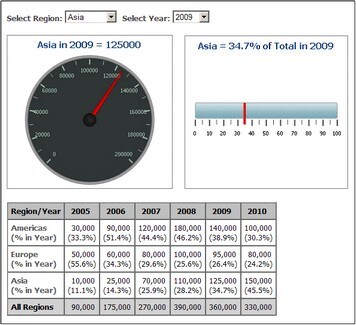

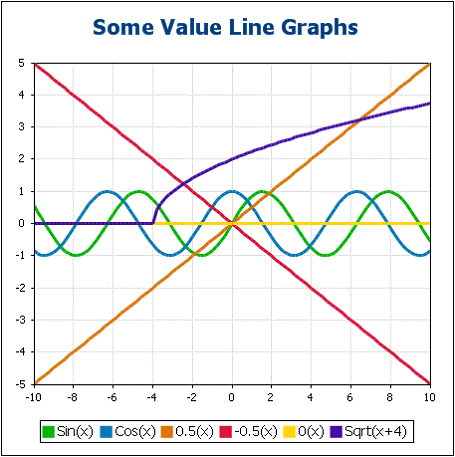

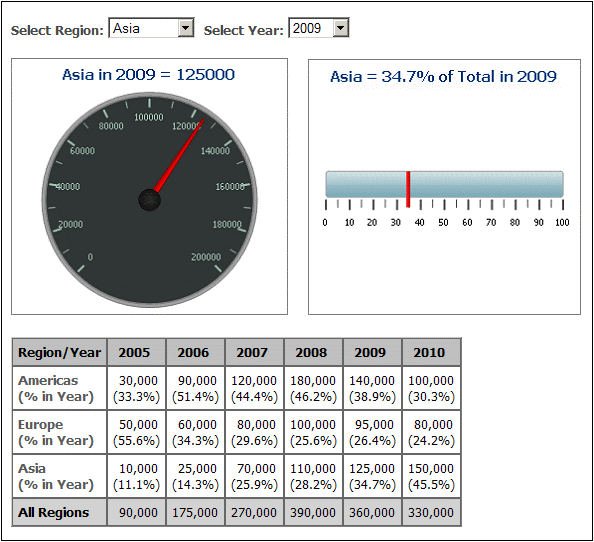

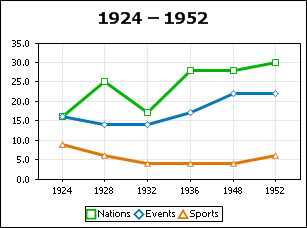

The various types of charts that are available are listed below. In the Change Type dialog (screenshot above), select the chart type you want and click OK.







Other basic settings

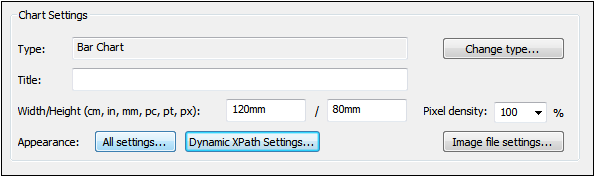

In the Chart Settings pane, you can also set the title of the chart (see screenshot below).

ChartSettingsPaneSV

Additionally:



The chart's width and height can be entered as static values directly in the Chart Settings pane.

The Pixel Density setting specifies the resolution of the chart image in the output. It is set as a percentage of the height and width setting. For example: If a chart is specified to have a height of 250px and a width of 250px, and the pixel density has been set to 200%, then a chart image file is created measuring 500px x 500px.  In the output, this image file will be constrained to dimensions of 250px x 250px, thus producing an image of higher resolution.

Click the Image File Settings button to specify the location and name of an image file for the chart. This image file is used when a preview is generated or when the Save Generated Files command is used. Image files created for previews are deleted when StyleVision is closed.
