Create a New Report

Entering Data into Three-Dimensional Tables (Z-Axis)

Scroll Home Prev Top Next More

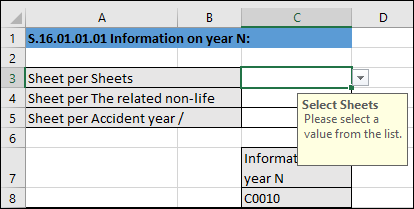

Most of the report tables have only two dimensions: the x-axis (columns) and the y-axis (rows). However, there are some tables where you may need to enter data into a third dimension (the z-axis): e.g., Table S.16.01.01.01 available through the entry point Solvency II 2.3 - Annual Solvency II Reporting Solo (see screenshot below).

inc-xa-slv-z-axis1_zoom70

In cases such as the one above, you can add a new sheet along the z-axis (third dimension) of the table as follows:



1.Click the Solvency II tab in the Excel ribbon.

2.Click the Add Sheet (z-Axis) button. Note that the commands to insert or delete new z-axis sheets are enabled only if the table supports adding the z-axis.

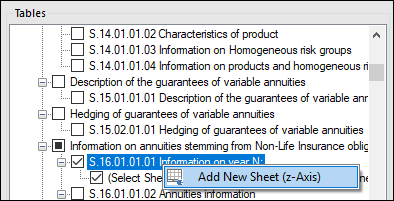

3.Alternatively, right-click the table in the Solvency II Report Pane. Then select Add New Sheet (z-Axis) from the context menu (see screenshot below). This creates a new sheet that displays the third dimension of the table (z-axis). The sheet representing the z-axis always has an indicative name that resembles the original table.

inc-xa-slv-z-axis3_zoom70

Data from the third dimension (z-axis) of a table is displayed as new sheets in Excel. Therefore, three-dimensional tables span across more than one sheet. This is an exception to the rule that one Excel sheet corresponds to one table in the XBRL report. In the XBRL instance, data that belongs to the z-axis will be, however, correctly reported as part of the same table.

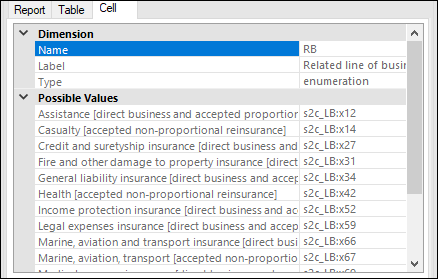

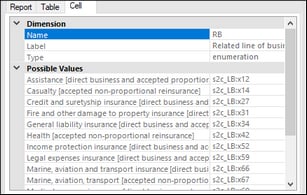

When you click a cell that represents the z-axis, all the possible values for the drop-down list are displayed in the Cell tab of the Solvency II Report Pane (see screenshot below).

inc-xa-slv-z-axis4_zoom70



Delete z-Axis sheets

You can delete sheets that contain data from the third dimension (z-axis) as follows:



1.Select the required sheet or click the corresponding entry in the Tables section of the Solvency II Report Pane.

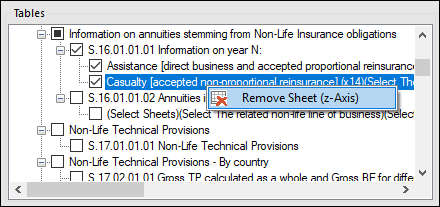

2.Click Remove Sheet (z-Axis) in the Solvency II tab. Alternatively, right-click the table in the Solvency II Report Pane and select Remove Sheet (z-Axis) from the context menu (see screenshot below).

inc-xa-slv-z-axis5
