How to Learn a New Programming Language this Summer


What better goal to set for your summer than learning a new programming language? Forget the “beach books” this summer and set your sights on diving into a new coding language – but which one should you pick?

As reported by EDC there are approximately 24 million professional software developers on Earth, and almost 700 notable programming languages (according to Wikipedia). I would wager a bet there is a staggeringly equal number of places online where you can learn one programming language or another. Whether you are already one of those 11 million coding experts or a newbie to programming, there is a plethora of information out there to sort though.

For the purposes for this blog post, we will certainly look at the world’s most-widely-used programming languages in 2021, but also at important languages for data manipulation and querying, so we’ll discuss: C and its derivatives (C++, C#, and Objective-C), Java, Python, R, JavaScript, Ruby, SQL, and XQuery.

Deciding where to start depends entirely on the kind of development scenarios you have in mind, so we’ve broken things down for you to make it easier. It doesn’t matter if you are a seasoned programmer looking to add a new language to your repertoire or a novice who doesn’t know the difference between C, C++, Objective-C, or C# yet. We have assembled a list of explanations to help you choose which language you may want to conquer next.

shutterstock_416174497_700py
Read more…
Tags: , , , ,

Simplifying License Management


We’ve been offering a centralized license server to all customers of our Altova server software products for quite some time. Now,  you can also manage all Altova desktop software licenses with the same license server. This support covers all MissionKit products, such as XMLSpy, MapForce, StyleVision, etc., whether they’re licensed separately or as part of a MissionKit product bundle.

Doing so greatly simplifies license management for the IT administrator in your organization and allows you to maximize your usage of the investment you’ve made in Altova software products. The Altova LicenseServer can now handle the management of installed-user, concurrent-user, and named-user licenses for all desktop developer tools and allows you to centralize license management either on a per-department level or for an entire organization.

133556519_700px

Read more…

Tags: , , ,

Learning About EPUB: Structure and Content


e-Books have revolutionized how an increasing number of people consume written content, allowing convenient access to myriad publications on e-readers, mobile devices, and computers.  But did you ever wonder about the technology that makes it all possible?

There are various formats used to create e-books, and one of the most popular is the standards-based EPUB format. Let’s take a look at how EPUB works by creating our own EPUB e-book, then re-purposing some existing HTML pages to flesh out the content.

e-reader

Read more…

Tags: , , ,

Using Google Cloud SQL


Google recently announced their next generation of managed MySQL offerings on Cloud SQL, so we wanted to take it for a spin and create a cloud-based SQL database that we could then utilize as the back-end for mobile apps, or even for advanced data analytics from our desktop.

According to Google, the two principal goals of the second generation of Cloud SQL were better performance and scalability per dollar. It seems that they succeeded in these goals: the second generation Cloud SQL is more than seven times faster than the first. And it scales to 10TB of data, 15,000 IOPS, and 104GB of RAM per instance — well beyond the first generation. So it looks like the ideal, scalable cloud-based database back-end for mobile apps.

Data n the cloud

Read more…

Tags: , , , , ,

Is it just a wrapper around HTML5 and JavaScript?


When we demonstrate MobileTogether at tradeshows, we often get asked this question: “So is it just a native app wrapper around HTML5 and JavaScript?” The simple answer is: “No.”

MobileTogether is a complete mobile app development framework that is based on our very own rendering and processing engine, which gives us a lot more flexibility and power to provide a true native app experience on each mobile operating system platform and also make important mobile platform functions that are not commonly accessible from JavaScript or HTML5-based web apps available to the developer.

Table user question

Read more…

Tags: , , ,

XBRL Data Quality of SEC Filings in EDGAR


For fundamental investors probably the most important financial information to study are the financial reports from companies that they wish to potentially invest in. For publicly traded companies in the US, the SEC regulates what data needs to be reported and at which frequency, and investors typically access those financial reports through their own brokerage firm’s website, or through publicly available databases from other Internet providers. In addition, all the original filings from all companies are also directly available from the SEC in the EDGAR database. In addition to HTML and PDF versions of those financial reports, the EDGAR database also contains XBRL versions of those company filings since 2007, with the intent of making this data more easily comparable and directly consumable by computer programs for further analysis.

At least that is the goal…

In this article we’re going to look at some issues with the XBRL data quality of company filings in the SEC’s EDGAR database and show the surprising lack of correlation of high-level financial data extracted from the XBRL filings with publicly available financial data about US companies provided, e.g., by Yahoo Finance, Google Finance, and Fidelity Investments, as well as the shocking discrepancies found in the data reported by those separate services amongst one another.

Edgar_Validation

Read more…

Tags: , , , , ,

How to upgrade an old MacBook Pro to Windows 10


With the recent release of Windows 10, I embarked on a fun weekend project to convert my old MacBook Pro laptop (late 2013 model) into a new Windows 10 laptop. The process was surprisingly straight-forward, and the machine runs extremely well with all hardware features fully supported, including the high-resolution screen (“Retina display”), integrated camera (“iSight”), WiFi, Bluetooth, and all external ports. In fact, startup times, as well as time to wake from sleep, are slightly better than under MacOS, and all of the software, including Office, Adobe Creative Suite, etc., appears to perform better as well. I’m very happy with the result and this is now going to be my main laptop for all my business trips (and vacations) going forward.

You may ask why anybody would want to convert a MacBook Pro into a Windows 10 laptop in the first place. So let me explain my motivation…

Windows 10 Upgrade Progress

Read more…

Tags: , , , ,

Learn About XML Schema 1.1


Coinciding with support for XML Schema 1.1 validation and editing in XMLSpy 2014, we’ve released a brand new Altova Online Training course on XML Schema 1.1 technology. The course covers the fundamentals of the XML Schema language and is appropriate for beginners as well as experienced XSD developers who want to learn the ins and outs of the latest version of the standard.

Learn XML Schema 1.1 with Altova Online Training

This self-paced, online course is broken into nine chapters, which you may complete in order or simply focus on the areas that interest you:

  1. Schema Languages
  2. Schema Core Concepts
  3. Built-in Datatypes
  4. User-defined Simple Types
  5. Complex Types
  6. Namespaces
  7. Identity Constraints
  8. Include / Import / Override
  9. New Features in XML Schema 1.1

The XML Schema 1.1 Technology course provides a balanced mix of narrated content, hands-on practice exercises, and video demos, helping you learn about XML Schema in your preferred style.
Like all Altova Online Training courses, the XML Schema 1.1 training is provided 100% free of charge. Simply access the class on our training page and complete it at your own pace.

What course would you like to see next? Leave us a comment here on the blog!



Tags: , , ,

XML Summer Fun


Aloha! Summer is the time to hang loose, get some sun, and recharge your XML knowledge. Altova offers free, self-paced, Online Training in XMLSpy, MapForce, and StyleVision. We also have technology specific training in XBRL, XSLT, and HL7.

Don’t be a poser when your bro’s talk up XSLT transformation. Our classes will let you brag about some cherry surfing through gnarly XPath code.

XML getting you bummed? Brush up on XMLSpy techniques to ride a fat wave to a juicy completed project. Let MapForce put your data in the best form for your project and make your output major with StyleVision.

Don’t get cranked by the tax code. Use our XBRL training to become the Big Kahuna and shoot the pipe to the Surf Shack of Standards Compliance.
clip_image002
Grab your board, and surf over to Altova Online Training to catch some sweet knowledge.
You’ll say “Mahalo, Altova!”

Tags:

Transforming a Plain Layout in StyleVision


Altova Online Training’s newest course, XSLT Technology, leads the student though several transformations of XML data into new formats. Even with all the transformations performed in the class, there are some transformations that did not make it into the final edit.
In Chapter 4 of the XSLT Technology training, I walk students through the process of creating a flyer for the play “Hamlet” using StyleVision. The source content is in XML, and StyleVision autogenerates the XSL stylesheets required to render it into HTML, PDF, and Word, based on our design.

I asked the Altova Art Department to spruce up my design, and, while I did not end up using the nicer design in the training, I wanted to show how to turn my plain flyer into the Art Department’s vision.
clip_image001
Let’s explore the transformation.

Read more…

Tags: ,

Release 2 of the Altova MissionKit 2012


It’s an exciting week here at Altova! We have several new offerings to tell you about, including Release 2 of the Version 2012 Altova MissionKit and entire product line, a new Altova Online Training course on XSLT Technology, and a new service called Altova Product Consulting. clip_image001 Let’s start with what’s included in the latest product release. Version 2012 Release 2 delivers a host of the new features that have been most frequently requested by our customers, including support for EPUB 2.x, sorting of data mapping results, RichEdit functionality for Authentic eForms, code generation from UML sequence diagrams, and much more.

Version 2012 Release 2 Highlights

EPUB As the demand for e-books and other digital publications has exploded, so have the number of requests we’ve received from developers who need an easy way to create and edit these documents in XMLSpy 2012. In Release 2 we’ve added support for EPUB® (electronic publication), the open standard for e-books from the International Digital Publishing Forum (IDPF). It’s easy to view and work with the various files that make up an EPUB document in XMLSpy’s Archive View, which supports creating, editing, validating, and previewing EPUB digital publications. clip_image003 XMLSpy already provides validation and support for editing XML, XHTML, CSS, and other standards-based files that comprise EPUB documents, making it a natural choice for creating and working with EPUB content. Check out all the new features in XMLSpy. Sorting for Data Mapping Projects Another frequently requested feature is the ability to sort data in mapping projects where the final output format needs to be ordered differently than it was in the input. MapForce 2012r2 includes two powerful new sorting features that you can apply in a variety of ways. The screenshot below shows a new function that performs a multi-level sort on the source data before writing the output file: clip_image004 Another option is available for sorting relational input. MapForce users have long been able to sort database data through ORDER BY statements in SQL queries. However, SQL queries that operate inside the database are not always sufficient for complex data mapping tasks. MapForce 2012r2 adds additional database sorting functionality to the existing MapForce SQL-WHERE component to become SQL-WHERE/ORDER, which is especially useful when database input requires additional processing that cannot be accomplished in a SQL query, or other data or conditions can impact the sorted order of data rows. clip_image005 Read more about new MapForce features. Other important features added in R2 include RichEdit functionality for Authentic eForms created in StyleVision, code generation from UML sequence diagrams in UModel, support for logical files in IBM® iSeries® databases across the product line, and much more.

Upgrade Info

Check out the rest of the features added in Release 2. This new version is free to download and install for customers with Support and Maintenance. If you’re not already an Altova customer, you can download a free, fully functional 30-day trial.

XSLT Technology Training

We are thrilled to announce the latest Altova Online Training course, XSLT Technology. This free, online, self-paced class introduces students to the concepts of XSL, XSLT, XPath, XSL-FO, and more, through guided tutorials and videos. You can practice working with these technologies using the tools of the Altova MissionKit to transform XML to XML, to HTML, and to PDF. clip_image007

Altova Product Consulting

Have you ever wished you could purchase a few hours of a product expert’s time – whether you need to determine if a particular tool could solve your problem, or need help creating a schema or mapping project, or simply require in-depth product support? We’ve heard from a lot of customers with this very requirement – and in response we have created Altova Product Consulting. Altova’s Product Consulting engineers are experts on Altova software and related technologies. Services include determining if an Altova product meet the needs of a particular project, creating a MapForce mapping file (.mfd), designing a StyleVision design (.sps), and so on. Unlike typical complicated consulting engagements, Altova Product Consulting services are sold per hour, the allotment of which is agreed upon in advance, so there are no surprises. Get more information on specific services provided, pricing, and how to get started.

Tags: , , , , , ,

Using Charts to Effectively Communicate Data


Altova first added support for charts and reporting the Altova MissionKit with the launch of Version 2011 last September. The v2011 reporting functionality includes options for line charts, 2D and 3D bar charts, 2D and 3D pie charts, round gauge and bar gauge charts. Here are a few examples: Charts created with the Altova MissionKit v2011

Advanced chart features in v2011r2

Version 2011 Release 2 of the Altova MissionKit, introduced on February 16, adds an exciting group of enhancements to the chart and reporting features in XMLSpy, StyleVision, and DatabaseSpy. The chart design options and user interface work the same way in all three applications, so MissionKit users can work intuitively and productively as they move from processing XML data in XMLSpy, to preparing charts for a business intelligence report with StyleVision, and even when they create graphical displays directly from SQL query results in DatabaseSpy. The wide range of new customizable charting features introduced in version 2011 release 2 includes:

  • Stacked Bar charts
  • Area charts
  • Stacked Area charts
  • Candlestick charts
  • Chart overlays
  • Background images and color gradients
  • Ability to change position of axis labels
  • And more!

Now you can create attractive and informative charts to represent a wide variety of data sets without exporting data to a dedicated charting application. Charts created using the Altova MissionKit are not limited to any specific presentation technology – for instance you can use StyleVision to include charts in HTML, Microsoft Word, RTF, or PDF documents, or you can save charts created in DatabaseSpy in a variety of image formats at the custom resolution you specify. In this post we will show some examples of the new charts and features available in all three MissionKit reporting and charting applications – XMLSpy, StyleVision, and DatabaseSpy.

Stacked bar charts

Stacked bar charts are a variation on bar chart presentation and are especially useful when multiple ranges of data need to be illustrated. Stacked bar charts are also useful to more clearly illustrate data in a smaller area. The image below shows a stacked bar chart to illustrate the performance of a sales team by region over two years Stacked bar chart Note that the combined height of each stack in the Stacked Bar Chart represents the total sales over the two-year period for each Territory, since the sales for Last Year are added above the Year To Date numbers. Stacked bar charts complement regular bar charts and 3-D bar charts to offer users the greatest flexibility in illustrating SQL query results. If the user prefers horizontal bars, a checkbox labeled Draw X and Y exchanged in the Change Appearance tab selects that orientation. Chart orientation option Horiztonal stacked bar chart This orientation option is also available for other 2-D bar charts, line charts, area charts, and candlestick charts.

Area charts

Area charts are similar to line charts, with shading applied to make a more graphically appealing display. The area chart below shows a record of temperature and humidity changes by hour over the course of one day. Creative application of color can emphasize the point! Area chart To successfully build an area chart, the analyst must consider the values in each data category. As the area chart is constructed, each category forms an opaque layer on top of the layers for data retrieved previously. In the case illustrated above, Temperature was always a larger number than Humidity, so a SQL query was constructed in DatabaseSpy to retrieve the Temperature value before Humidity to prevent Temperature from acting like a curtain to hide the Humidity data. However, if the data columns appear in a sequence with values in increasing order, the last layer would overlap and hide all the preceding layers. In that case, the chart tab heading titled Select Data lets the user add and delete columns from the results to re-sequence the data correctly. The Select Data column also lets the user edit the names assigned to each column on the X-axis label. Select Data dialog As alternative solution, the Transparency option in the Change Appearance tab lets the user adjust color levels to allow hidden layers to show through.

Transparency dialog

Stacked area charts

As implied by their name, Stacked Area charts layer the columns of a data set to illustrate the overall sum of a data series. Stacked Area charts also eliminate the potential overlapping data problem that can occur with regular area charts. The chart below shows a table of air passenger revenue miles traveled by month, with individual regions for domestic and international travel. Stacked area chart The Stacked Area chart creates a graphical representation of the total of Domestic and International miles, even though the total miles value was not part of the provided data. This is apparent at the top of the January entry, where the International region intersects the Y axis just below 600 (the original data showed 392 million Domestic miles and 181 million International miles, for a total of 573). A strategic data analyst will always consider the nature of the data to be reported when choosing any particular chart type. For instance in the weather example we used above, adding temperature and humidity values in a stacked bar chart would not be logical!

Candlestick charts

Candlestick charts were originally developed by a wealthy Japanese businessman who began trading at the local rice exchange around the year 1750. He kept records of the local market psychology, learning to boost his profits by carefully monitoring prices and not rushing into trades. Today, charts are used to represent financial data such as stock prices over a period of time. Every day the market is open, each stock has four relevant data points that can be rendered in a candlestick chart: the price at market opening, the price when the market closed, the high price during the day, and the low price during the day. Investors and financial analysts like to view these indicators to gauge the stock’s performance over a period of time. In the candlestick chart below, each solid bar represents the range between the opening and closing price and the thin vertical line through each bar shows the extent of the high and low prices for the day. Candlestick chart In this version of the chart, following common convention, the color of each bar signals whether the stock was up or down for the day. If the bar is green, the stock was up for the day– it opened at the price indicated by the bottom of the bar and closed at the price indicated by the top. If the stock was down for the day, the bar is red and the symbolism is reversed – the stock opened at the price indicated at the top of the bar and closed at the price shown by the bottom. Numerous options are available to set line and fill colors, the Y-axis range and values, and more. Because they were intended to be printed in black and white, the original candlestick charts used empty bars to indicate the price increased and solid bars to indicate price decreases. The Altova MissionKit offers this option: Candlestick chart in black and white Another candlestick chart variation omits the opening price and simply illustrates the range by a vertical line and the closing price by a horizontal line. This option is automatically supported when a data set only includes the high, low, and closing prices. Candlestick chart without opening price

Chart overlays

The Overlays feature lets you combine multiple charts in a single image. Each overlay chart has unique settings and can even be generated from a separate data file. The image below shows a candlestick chart of a stock’s daily prices with the daily sales volume in a bar chart overlay. Candlestick chart with bar chart overlay

Support for background images & color gradients

The ability to specify background color gradients and background images gives you even more flexibility for creating customized, eye-catching charts. Overlaying one chart on another lets you visualize multiple data sets with different Y-axes and types. Area chart with a background image The Change Appearance dialog lets users select a background image, as in the Winter Games chart above, or apply a background color gradient, as in the Summer 2010 chart below. Change Appearance dialog Bar chart with a line chart overlay and background color gradient If you’d like to see for yourself how easy it is to use Altova tools to create attractive charts from XML and database data, download a free trial of the Altova MissionKit.

Tags: , , , , , , ,

Altova Adds to NIEM Support in v2010r3


Clashes between government agencies are the stuff of legends and entire TV shows: the FBI and the CIA, the local sheriff’s department and the big city CSI, Homeland Security and the Pentagon, Jack Bauer and CTU. Perhaps this has to do with the territorial nature of some of these entities, but perhaps, just perhaps, technology has a part to play in these conflicts. Incompatible architectures and data formats, legacy systems, and other technology road blocks within the United States government sometimes made it difficult for agencies to efficiently share pertinent information such as arrest reports, amber alerts, immigration details, and more.
The National Information Exchange Model (NIEM) is an XML-based standard for data exchange between United States government agencies and their information partners. It aims to provide a means for these entities to improve decision making, achieve greater operating efficiency, mitigate risk, improve public safety, and increase ROI through intergovernmental information exchange.
As a leader in XML tools and technologies, the Altova MissionKit already inherently supports NIEM on a variety of different levels. In v2010r3, we added two very specific features to XMLSpy that extend the XML editor with capabilities that are invaluable for NIEM development. For more on these features, see the recent NIEM blog post by our CEO and XML Aficionado, Alexander Falk.
Below is a brief overview of the support provided for NIEM across the MissionKit, from XML Schema editing in XMLSpy, to XMI import and UML diagramming in UModel, to data integration in MapForce, and beyond.

XMLSpy

XMLSpy® 2010 provides a graphical schema design interface which simplifies the development of XML Schemas, allowing XML code to be generated in real-time behind the scenes. Users can switch back and forth between this view and text view at any time during their design process.

The graphical schema editor provides built-in support for creating the IEPD Extension Schema, Constraint Schema, and Exchange Schema.

clip_image001

In addition to the broad XML Schema support described above, XMLSpy provides comprehensive support for all other prevalent XML technologies, including:

UML Diagrams

The first stage in any development lifecycle is a thorough business requirements review. UML is particularly well-suited to modeling software projects because it provides a standardized approach to the design process. Scenario-based planning is recommended for NIEM, and though there is no UML diagram requirement, class diagrams, use-case diagrams, and sequence diagrams all provide value to IEPD documentation. In addition, NIEM provides a free tool for mapping data requirements based on an uploaded XMI representation of a UML model
UModel® 2010 is an advanced UML tool that supports all fourteen UML 2.3 diagrams, BPMN, SysML, and more. It works seamlessly with XML technologies like XMI, letting users easily import and export XMI based on their UML diagrams. UModel can even render XML Schemas in a format similar to UML diagrams and integrates seamlessly with all other MissionKit tools including XMLSpy, MapForce, and SchemaAgent. UModel also supports code generation, round-trip engineering, and reverse engineering, as well as integration with the popular Visual Studio and Eclipse IDEs.
UModel can be used two different phases of NIEM development:

  • Scenario Planning – to model and document with use case diagrams, sequence diagrams, and business process modeling
  • Map & Model – to develop class diagrams to create the exchange content model
clip_image002

XML Schema Management

Because of the potential to have many different schemas in each IEPD, XML Schema management can become an arduous process. SchemaAgent® 2010 is a unique file management tool that lets users visually manage their XML Schema, XML, XSLT, and WSDL assets in a project-based environment so that changes and structure of the file configuration can be easily recognized. SchemaAgent users can even view mapping files created using MapForce.

clip_image003

Data Mapping & Exchange

Data mapping is a crucial step at several levels in the NIEM process. Mapping helps users generate a subset schema to determine what elements can be used from the core and domain models, it is also used to perform a transform from one NIEM vocabulary to another. Some NIEM implementations also employ Web services to provide a mechanism for the exchange.
MapForce® 2010 is an any-to-any data mapping and integration tool that supports all of the potential data formats used in the NIEM lifecycle including XML, databases, flat files, Excel 2007+, and Web services. MapForce maps data based on its underlying structure (i.e. XML Schema), enabling mapping designs to be reused for recurrent transformations. MapForce also supports mapping to and from multiple source or target components. In addition, MapForce can be used to generate documentation detailing mapping projects for non-technical stakeholders in a variety of formats such as HTML and Microsoft® Word.

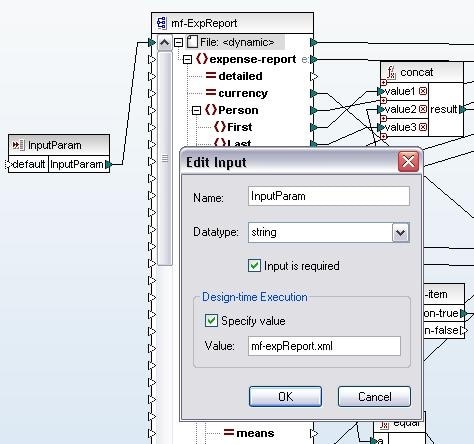

clip_image004

To try out this functionality on your own, download a free 30-day trial of Altova MissionKit now!

Tags: , , , , , , ,

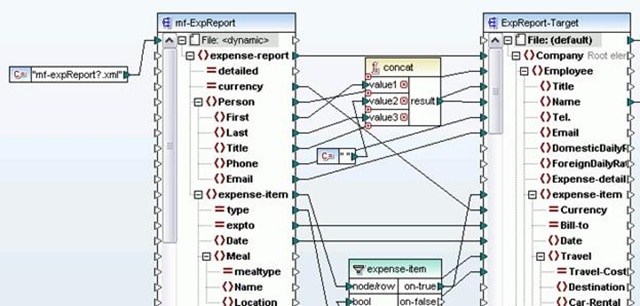

MapForce v2010 – “Most Wanted”

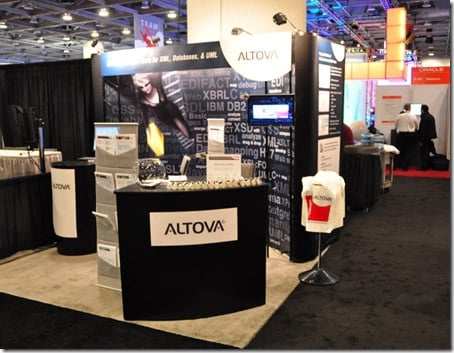

As a frequent attendee at the Altova booth at tradeshows, I have to say that this v2010 "Most Wanted" release has been one of my favorites since I’ve been with the company. Rather than centering the release around a marquee technology like we have in the past with XBRL, OOXML, etc., this time we have added to the MissionKit a collection of over 70 (not a typo) of the features that our customers have requested the most. Many of these requests have come directly from the tradeshow floor, and some I even recall scribbling down myself. Others have come from through our Support Center, and still more from Altova’s online user forums. So keep those requests coming, and we’ll keep on listening! In this post I’ll outline a few of the new features added to MapForce below, and be sure to look out for our future posts where we will spotlight individual features in more detail. Processing data from/into multiple files MapForce users have always been able to map data explicitly to and from many different components at the same time. This feature takes that ability much further, letting you implicitly process files, for example to/from a file collection or directory using a variety of different methods including wildcard values, database tables, auto-number sequences, and more. For example, the screenshot below shows files from a directory being mapped into a single target file using a wildcard (?) value. clip_image002 The output file generated from this mapping can be saved to any location from the Output Preview window. If you’d rather separate the output results into two separate XML files, you can just add a connection between the two file items at the top of each mapping component. Using file names as parameters As a complement to this functionality, you can now use file names as parameters in your mappings – an extremely useful feature for real-time transformations when this information may not be known until run time. In the example below, this is accomplished using an input parameter and connecting it to the file item node in the source mapping component. clip_image004 Support for WSDL 2.0 Like XMLSpy, MapForce v2010 has added support for Web services based on WSDL 2.0 in addition to WSDL 1.1. When you are building or connecting to Web services, MapForce automatically recognizes the syntax of WSDL 2.0 documents and applies appropriate processing rules. clip_image006 This feature gives MapForce users the flexibility to work with either version of the W3C format. A number of other features have been added to the "Most Wanted" release of MapForce including: · Support for xsi:type in XML Schema · EDI file validation in generated code · Support for additional EDIFACT messages So… be sure to download a free trial of MapForce v2010 – or if you have active SMP, download your upgrade today!

Tags: , , ,

What to Do On a Rainy Day in San Francisco?


That was the question for 30,000-plus attendees at Oracle OpenWorld 2009 last week, when weather forecasters were predicting the remnants of a Pacific typhoon would hit San Francisco with winds up to 60 miles per hour and drop rainfall measuring multiple inches. A rainy day in San Francisco Fortunately, the best attractions were all indoors. Oracle OpenWorld is one of the largest events held each year at the Moscone Convention Center. The keynote speeches, conference seminars, and partner exhibitions fill all three buildings. Even Howard Street between the North and South halls is closed for an entire block to create room for the lunch pavilion. Oracle OpenWorld is the best place to come for face-to-face education and interaction on all subjects related to every facet of the Oracle ecosystem. Altova is an Oracle Partner and this is an event we look forward to every year. The Altova MissionKit provides extensive support for database management, query, and design; database integration; database differencing; and database content editing. Altova at Oracle OpenWorld We love to meet users whose Oracle databases contain XML and show off features like support for Oracle XML DB data modeling, and the XQuery editor, debugger, and profiler in XMLSpy. We love to talk to users whose Oracle databases don’t contain XML yet, so we can demonstrate how to derive an XML Schema from the tables and relationships in a non-XML database. We also like to meet users who sometimes interact with databases other than Oracle, since the database functionality in Altova tools is never restricted to a single database technology. Due to the Oracle acquisition of Sun this year, MySQL was a popular subject. Our DatabaseSpy demo in the Altova booth highlighted simultaneous connections to Oracle and MySQL databases with interactive functionality to compare and merge data between tables in different database types. With convenient shuttle service from all the area hotels to Moscone, the question became not “What to do in the rain?”, but “What to do first?” Conference sessions covered every topic from databases to applications, to middleware, to specialized industry topics, and even XBRL. In Moscone West the Oracle Demo Grounds were always busy, with dozens of individual stations simultaneously active. The Altova booth was a popular spot, as were displays by other Oracle partners, including Amazon, Salesforce, and many more. To refresh and recharge, there were lots of fun things to do too. We even saw evidence that Paul and Ringo might have been there. They left their instruments Best yet, when we stepped outside after a long, productive day, the rain had stopped and we were presented with a warm San Francisco night. Check out our Oracle Openworld 2009 video slideshow on YouTube to see more:

Tags: , , , , , , ,

Internationalization with the Altova MissionKit


The following post is written by Peter Reynolds, CEO and translation management consultant at TM-Global and Executive Director of Kilgray Translation Technologies. An Irish national based in Warsaw, he holds a BSc and an MBA degree from Open University and is a localization and translation industry veteran. Peter previously worked at Idiom Technologies Inc. — now SDL PLC. As director of the LSP Partner Program at Idiom, Peter was responsible for making its global LSP partners program a successful and innovative venture. Before Idiom, he worked on language technology development for several global localization companies: Lionbridge, Bowne Global Solutions and Berlitz GlobalNET. He managed the Dublin development team responsible for BerlitzIT, Elcano, Freeway 2.0 technology solutions, and internal project and vendor management tools. Peter has been actively involved in the development and promotion of standards (notably XLIFF) for more than ten years, mostly at OASIS. Until 2008 when XLIFF was published, he was secretary of the XLIFF Technical Committee at OASIS and chaired the Translation Web Services TC. He is currently involved in OASIS, TILP as well as being the Irish expert to ISO SC2 and SC4 and training auditors for the EN 15038 standard.

Introduction

Every developer wants his or her applications to be used and hopes they will be very popular. A web application developed in rural Maine USA could easily be used by someone living in the next township or in Malaysia, New Zealand, Germany or Poland. Even if the application is not translated (localized), there are some important differences between how data is represented from one locale to another. The W3C definition of internationalization is “the design and development of a product that is enabled for target audiences that vary in culture, region, or language”. This does not mean that the product has to be translated into the language of the target audience but that it is designed in such a way that the target audience can use the application and understands the way data is presented. The reason for internationalization is to ensure the widest possible audience for your application and to make its translation easier and less costly. This article will introduce you to internationalization and demonstrate how applications can be internationalized using the Altova MissionKit, an integrated suite of XML, database, and UML tools including XMLSpy, StyleVision, MapForce, and others. If you are using tools such as XMLSpy and StyleVision it is very likely that you are already creating internationalized XML applications. The strategy which I suggest is that you try and figure out what target audience your applications are intended for beforehand and implement internationalization accordingly. In this article I will first discuss a strategy for internationalizing XML. I will then introduce the Internationalization Tag Set and examine issues relating to XML internationalization.

Strategy for Internationalizing XML

The first step in planning internationalization is to make an informed decision as to the level of internationalization you require. There may be people in your organization who can help you make this decision, and it would be particularly useful to obtain input from people who live in different countries. The three-level approach presented below should help you decide on the level of internationalization you are going to implement. However, you should remember that you may encounter some problems if your documents or applications are not internationalized, but you will certainly not have the same problems if to ensure that they are fully internationalized. The three levels of internationalizations are:

  • Level 1 – Your applications are likely to have a relatively small audience, which could grow, but the applications are unlikely to be translated or used internationally. In that case you should just follow the suggestions in this article and ensure that you use the functionality in Altova MissionKit to support internationalization.
  • Level 2 – Your applications will have a wide audience and could be translated and used internationally. As well as using the Altova MissionKit functionality you should also use the Internationalization Tag Set. This is a schema released by the W3C for the purpose of internationalization.
  • Level 3 – Your applications are most likely to be used internationally and translated into a number of different languages. You should consider how to improve the localization process by separating content from code and ensuring the translators can see the document or application as the end user would see it. This is beyond the scope of this article but you will find some relevant information on the subject in the references below.

The software tools in the Altova MissionKit have a lot of functionality which supports internationalization. If you are using these tools you have a very strong basis for creating internationalized XML documents. Unicode is the default encoding for applications created in the XMLSpy XML editor, and I would strongly recommend using this character set.

Internationalization Tag Set

The Internationalization Tag Set (ITS) is recommended by W3C and designed to create XML which is internationalized and can easily be localized. If you are working with XML documents which might be localized, I would recommend using ITS. With this technology you are able to specify which text requires translation, provide instructions for translators and specify the direction of the text. The seven data categories included in the ITS are:

  • Translate: Defines which parts of a document are translatable.
  • Localization Note: Provides notes and helpful information for translators.
  • Terminology: Identifies terms in the documents.
  • Directionality: Indicates the direction which the document or part of the document is written and should be read.
  • Ruby: Indicates which parts of the document should be displayed as ruby text. (Ruby is a short run of text alongside a base text, typically used in South-East Asian language documents to indicate pronunciation or to provide a brief annotation).
  • Language Information: Identifies language used for the different parts of the document.
  • Elements Within Text: Indicates how elements should be treated with regard to linguistic segmentation.

W3C has published a best practices guide for internationalizing XML documents which details how to use ITS. It can be found on their web site at: http://www.w3.org/TR/2007/WD-xml-i18n-bp-20070427/ The specification can be found in this section: http://www.w3.org/TR/2007/REC-its-20070403/ I would strongly recommend you read these documents before proceeding with internationalization.

Internationalization Issues

The following table describes some of the internationalization issues you may come across. This will be followed by a more detailed explanation of these issues and suggestions for how they can be resolved using the Altova MissionKit. .

ISSUE DESCRIPTION
Encoding Characters need to be supported by the code page being used. Unicode is an encoding which supports characters from all common language.
Date & TimeHow dates and time are represented varies between countries.
NumbersHow decimal points and thousands are represented varies between different countries.
CurrencyAs well as difference with how the number is represented in some countries the currency symbol or word is written after the number while in most it is written before.
Salutation & Names There are many differences in salutations between countries, and in some countries, such as Hungary, a person’s name is written with the family name first. No middle name is used in Japanese.
AddressThere are a number of differences relating to address, such as the house number appearing before the street name in some countries and after in others. Also, some countries use a ZIP code vs. a postal code.
RTLText is many languages is read from left to right, but in some, such as Hebrew and Arabic, the text is read from right to left (bi-directional).
Sorting & Collation There are differences in how alphabets are sorted. Some Scandinavian languages have an ‘aa’ character which is usually, but not always, sorted at the end of the alphabet.
Exclamation & Question MarksIn English questions and exclamation marks are always at the end of the sentence, while in Spanish there is a question mark at the beginning and end of a sentence.

.

Encoding

All electronic text uses a character coding system where the character is represented by a number. Before the widespread use of Unicode this was one of the most significant internationalization issues. When an application tries to show a character that is not represented in a code page it will appear as garbage text. There were not only problems between different languages but also with characters appearing incorrectly on computers running different operating system. Unicode has solved most of these problems by creating a single code page regardless of platform, program or language. XML uses Unicode as its default code page. Any XML documents you create in XMLSpy will by default have the declaration encoding="UTF-8” If the file has not been created in XMLSpy, you need to ensure that the file is saved as UTF-8. UTF is an acronym for Unicode transformation format, and UTF-8 is a flavor of Unicode that uses 1, 2 or 4 bytes to store characters. It is the most commonly used flavor and is very widely used for XML and the Web. The other versions of Unicode which XMLSpy supports are:

  • UTF- 7. This is 7 bit version of Unicode. It should only be used in the context of 7 bit transports, such as email.
  • ISO 1064 UCS – 2 and UTF – 16. UCS is an acronym for Universal Character Set and UCS-2 uses two bytes for each character. UTF-16 is an extension of UCS-2 which uses 2 or 4 bytes to represent a character. UTF-16 is often used by Windows and Java. You should use UTF – 16 rather than UCS – 2 for new documents.
  • ISO 1064 UCS- 4. Uses 4 bytes for each character and is the same as UTF-32. UTF-32 is often used by Unix.

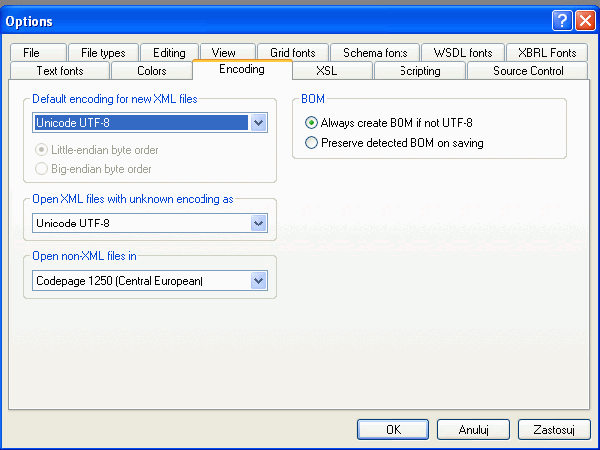

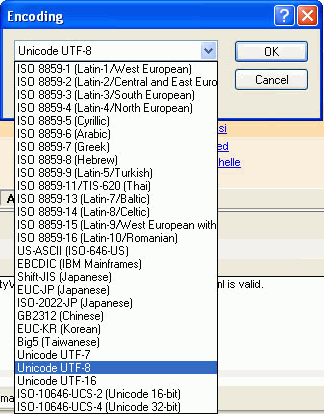

There may be reasons for using default encoding other than UTF-8. To set the default encoding in XMLSpy go to Tools | Options and select the encoding tab.  XMLSpy encoding options If you want to change the encoding for an individual XML document, open the document in XMLSpy and select File| Encoding. XML encoding options

Language

The XML namespace defines xml:lang to identify the language of an XML document. The value for xml:lang must be an ISO language code (ISO 639- 2). If you have an XML document which is written in one language but has a segment in another language you can use xml:lang at the root element to identify the main language of the document and use it at the element where the text in another language is used to identify that language.

Dates

In different countries dates and time are represented in very different ways. Let’s take as an example the date 10/09/08:

In most European countries this means the 10th of September 2008.
In the United States this means the 9th of October 2008.
In Japan this means 8th of October 2009.

The way to deal with this is to use ISO 8601 for specifying date and time within your application. This is a standard way for representing date and time in the format YYYY-MM-DDTHH:MM:SS[±HH:MM] where

YYYY- represents year
MM- represents month
DD – represents day
T signifies that Time follows this
HH- represents hours
MM- represents minutes
SS- represents seconds.

You can then use StyleVision to create a style sheet which formats the date in a way suitable to your target audience. StyleVision is a graphical stylesheet design tool that allows drag-and-drop design of XSLT and XSL:FO stylesheets to render XML data in HTML, Microsoft Word, PDF, and other formats. To use the date formatting functionality within StyleVision:

  • Select the contents placeholder or input field of the node.
  • In the Properties sidebar, select the content item, and then the Content group of properties.
  • Click the Edit button of the Input Formatting property.
  • The Input Formatting dialog will appear:

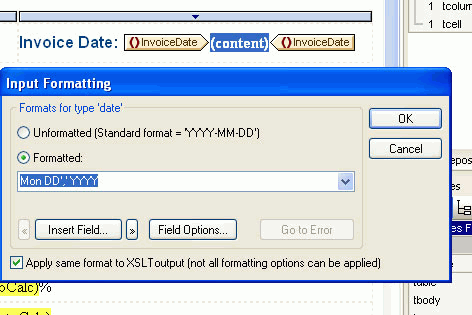

StyleVision date formatting

  • Select the Formated radio button. This will allow you to choose which data type you would like to use, and if you have selected a date, you can then choose the format for the date.

You can also select other date and time formats here. I would strongly recommend using the date picker. In order to insert the date picker, the cursor must be between an xs:date or xs:dateTime node. You then go to Insert on the main menu and Select Insert Date Picker. If the cursor is not between xs:date or xs:dateTime node the Insert Date Picker menu item will be greyed out.

Numbers

Decimals can be preceded by either a point or a comma depending on the locale. There are also differences for how thousands are represented. StyleVision provides functionality where you can format a number for your intended audience:

  • Select the contents placeholder or input field of the node.
  • In the Properties sidebar, select the content item, and then the Content group of properties.
  • Click the Edit button of the Input Formatting property.
  • The Input Formatting dialog will appear

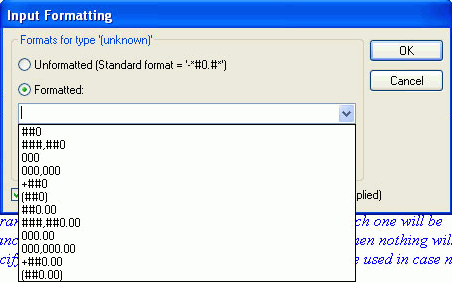

StyleVision number formatting

  • Select the Formatted radio button. This will allow you to choose the number format.

Money

The issues involving numbers also apply to money, but in addition to this there are different conventions for representing the currency symbol. Some currencies share the same name and symbol, such as the dollar, but the Australian, Canadian and Singaporean dollar are not the same currency, and this should be identifiable. You can deal with the numbers as shown above, but the issue of whether the currency name or symbol should go before or after the number is likely to be dealt with as part of the translation process.

Address

One of the problems faced by customers buying from a foreign company while making an online purchase is that the system does not allow them to enter their address properly. There are many differences, such as the house number being before or after the street name, the order the components of the address are placed and the format of the zip/postal code. CEN (The European Standards Institution) has developed a standard which lists the components of an address, and the UPU (Universal Postal Union) is further developing this to produce a comprehensive list of name and address elements. I would recommend that you ensure that you are getting the data you need for your main target markets but make sure that someone from another country can also enter their address. A drop-down list of countries could be used to ensure that there is error checking when you know certain components of an address are required but does not produce the error for other countries where you do not know the address structure.

Credit Cards

Some US-based web sites will not accept credit cards from outside the US. As a security check they insist on a valid US address. If you want to accept credit card payments and do business with people outside your country, you should check that foreign credit cards will be accepted.

RTL (bidi)

In many languages the text is being read from left to right but this is by no means universal. Arabic and Hebrew are written from right to left. In XML documents this causes further confusion as the XML elements are read from left to right but any text should be read from right to left. The ITS namespace has a direction attribute which can be used to identify which direction should be read. <its:span dir="rtl">متعة الأسماك!</its:span>

Sorting

There are differences in how alphabets are sorted. Some Scandinavian languages have an ‘aa’ character which is usually, but not always, sorted at the end of the alphabet. If you have set the language in your XML document and use xsl:sort for your XSL document then the sorting should work according to the sorting rules for that language. However, you should check that your processor does this as that is not always the case. The example files which come with StyleVision contain examples for sorting. Select StyleVision examples, then the tutorial folder, then sorting and open the file SortingOnTwoTextKeys.sps. To see how the sorting works go to the design view and right click on the member element. Then select the ‘sort by’ option on the context menu. Here you can control how the sorting works for this particular list.

Exclamation and Question Marks

In English, questions and exclamation marks are always at the end of the sentence, while in Spanish this punctuation occurs at the beginning and end of a sentence. This is something which will usually be corrected during the translation process.

Conclusions

Internationalization is an important step in ensuring the widest target audience for your application, and that translation is as cost effect and easy as possible. Your approach to this should be very pragmatic. Time spent up-front sorting out internationalization will result in huge benefits throughout the process and significantly increase marketing potential for your product. The purpose of this article was to present an overview and introduce you to internationalization. There is a lot more useful information available in the references listed below. Tools such as XMLSpy and StyleVision, both of which are included in the Altova MissionKit software suite, go a long way in making the internationalization process for XML documents much easier by providing a lot of in-built support for internationalization. The Internationalization Tag Set from W3C is a very significant innovation which is a great addition to the toolkit available to a developer who wants to build internationalized XML applications. XML is a technology which has had internationalization and translation in mind since its inception. The use of Unicode as the default encoding for XML is very significant and greatly facilitates dealing with any internationalization problems you may come across. The functionality available within the Altova MissionKit, ITS and Unicode are the basis for creating good internationalized applications.   Reference The following is a list of useful web sites and other resources providing further information on internationalization: Leading XML tools provider – Altova https://www.altova.com/ . They also offer a free trial of the MissionKit: https://www.altova.com/download. Unicode web site http://www.unicode.org/ Internationalization Tag Set http://www.w3.org/TR/2007/REC-its-20070403/ W3C Best Practices for internationalization http://www.w3.org/TR/2007/WD-xml-i18n-bp-20070427/ Open Tag (Yves Savourel’s) http://www.opentag.com/ Yves Savourel, ‘XML Internationalization and Localization’, a book which is an excellent source of information. More information can be found at: http://www.opentag.com/xmli18nbook.htm The TM-Global research and resource web site publishes a lot of useful articles, opinions and surveys on translation, localization and industry standards http://www.tm-global.com/ Web sites of internationalization guru Tex Texin http://www.xencraft.com/ and http://www.i18nguy.com/ Localization Flow – web site of internationalization experts http://www.locflowtech.com/ Value for money XML-based TEnTs and translation tools are available from companies such as Kilgray Translation Technologies http://www.kilgray.com/
